Precision Alignment for 100,000+ lb Assemblies Using Deco’s Custom Manipulation System

When working with massive industrial components, precision alignment is non-negotiable. Even a small misalignment can lead to production delays, equipment damage, and serious safety risks. One Deco Manufacturing customer faced this exact challenge: aligning extremely large assemblies—each weighing over 100,000 pounds—with accuracy and control. Multiple vendors had attempted solutions, but all failed due to the complexity, weight, and safety requirements involved.

Deco stepped in with a custom-engineered approach that solved the problem once and for all.

The Challenge: Aligning Multi-Ton Assemblies With Precision and Safety

The customer needed a process that allowed multiple enormous assemblies to be aligned with one another during production. The obstacles were significant:

• Extreme weight
  Each assembly exceeded 100,000 lbs, making manual manipulation impossible and dangerous.

• Previous attempts failed
  Other providers were unable to build a system that could safely control and align components at this scale.

• Need for micromovement control
  Precision adjustments—raising, lowering, shifting, and tilting—needed to be smooth, stable, and accurate.

• Safety at the forefront
  Traditional lifting equipment posed too much risk with parts of this size and mass.



The customer required a system that allowed controlled, precise, multi-directional movement—without exposing workers to danger.

The Deco Solution: Custom Dollies + In-Floor Manipulator System

Deco Manufacturing designed a custom assembly-line dolly and in-floor manipulator system engineered specifically for ultra-heavy components.

How the System Works

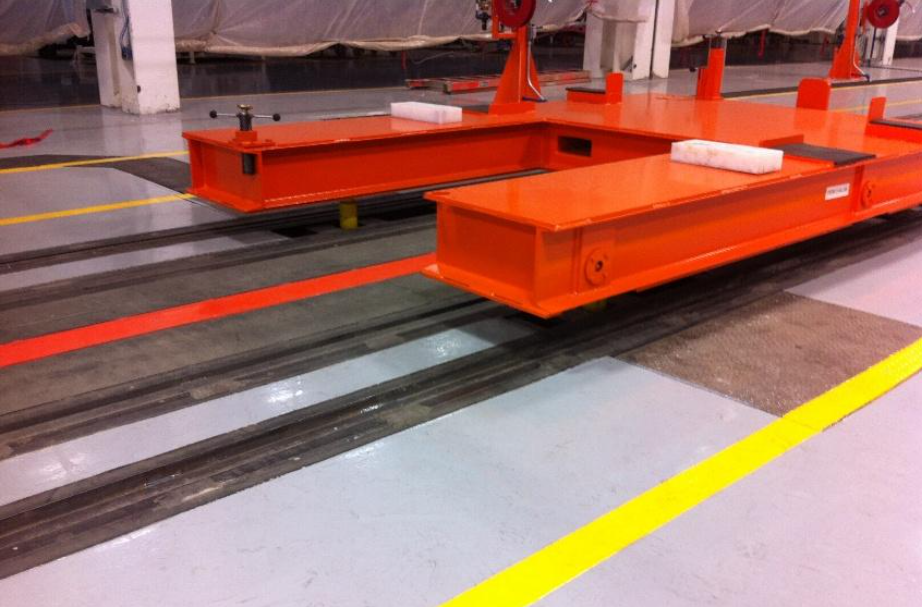

✔️ Custom dollies installed on rail-integrated assembly lines

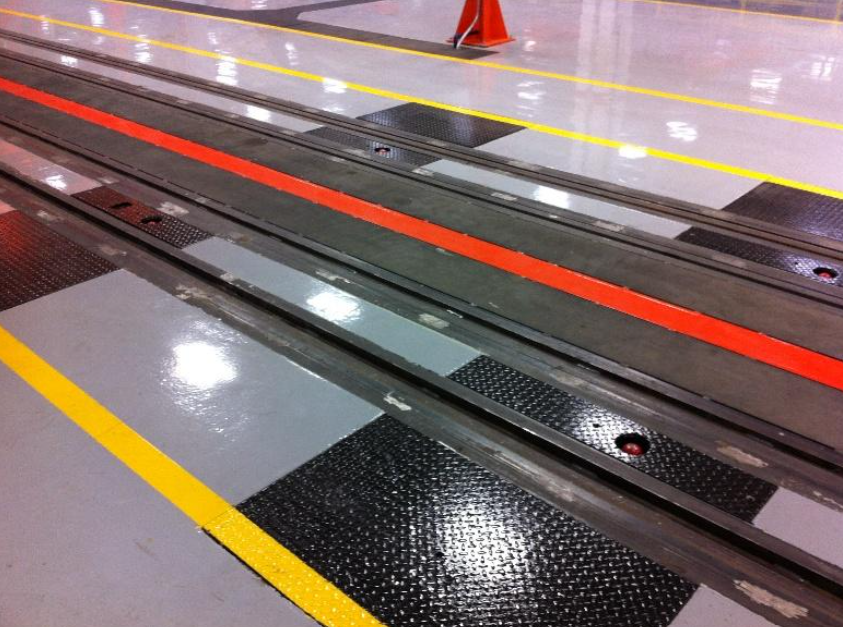

Each dolly is built for extreme load capacity and engineered to glide smoothly along in-floor rail sections.

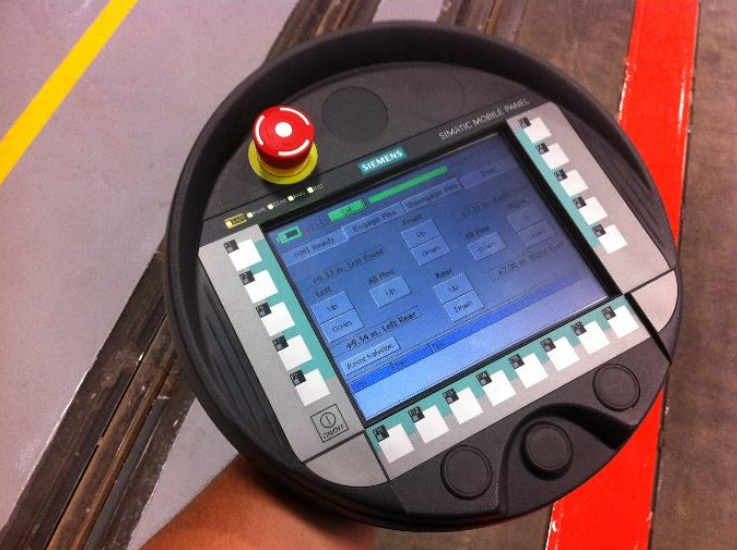

✔️ Wireless multi-axis control
Assemblers use a single wireless pendant to control each assembly with full directional adjustability.

✔️ Gyroscope-like motion
Assemblies can be precisely moved in all necessary directions:

• Raise/lower

• Shift horizontally

• Move forward/backward

• Tilt or rotate for fine alignment




✔️ Two-speed control for precise positioning
Fast speed for general movement
Slow speed for delicate final alignment as assemblies approach each other.

✔️ Engineered for safety
No need for manual pushing, overhead lifting, or worker exposure to high-risk contact points.

The result is a smooth, controlled, and highly repeatable alignment process that eliminates human strain and drastically reduces alignment errors.

Impact: Accurate Alignment at Massive Scale—Safely and Reliably

After implementing Deco’s system, the customer experienced transformational improvements:

• Successful alignment of assemblies over 100,000 lbs

• Dramatically increased accuracy and repeatability

• Safer working conditions for assembly technicians

• Faster production times with fewer alignment-related delays

• Elimination of failed attempts and unstable methods used previously





Deco’s solution allowed the customer to take an almost impossible alignment challenge and turn it into a controlled, efficient, operator-friendly workflow.

Why Companies Trust Deco With Their Most Complex Engineering Challenges

Deco Manufacturing specializes in custom automation, material handling, and precision manipulation systems for industries where standard equipment simply isn’t enough. Whether it’s lifting, aligning, moving, or controlling multi-ton assemblies, Deco engineers solutions that prioritize:

• Safety

• Precision

• Reliability

• Operator ease-of-use

• Integration with existing manufacturing lines





If your operation requires heavy-duty alignment, multi-axis control, or custom engineered movement systems, Deco can design the exact solution your process demands.
